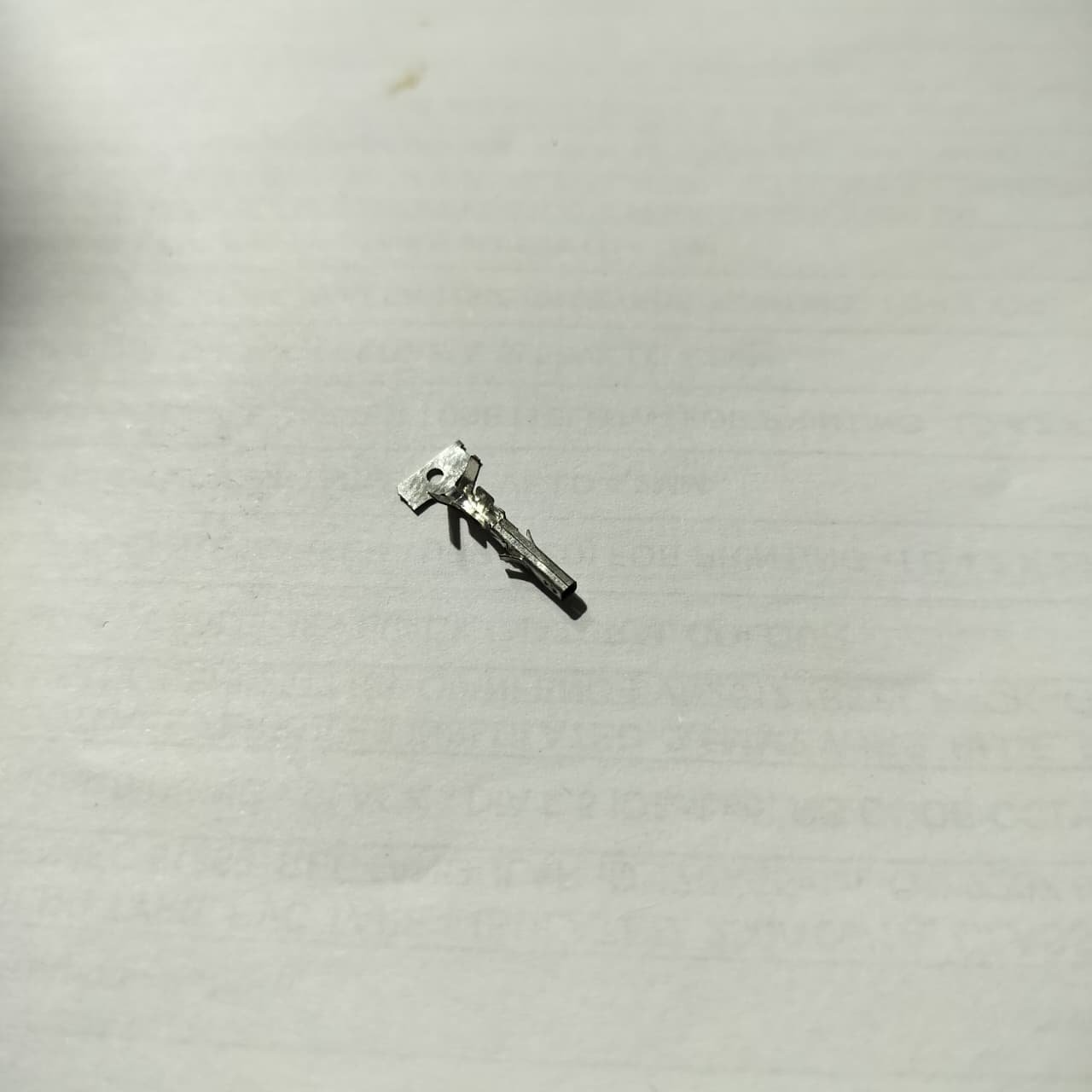

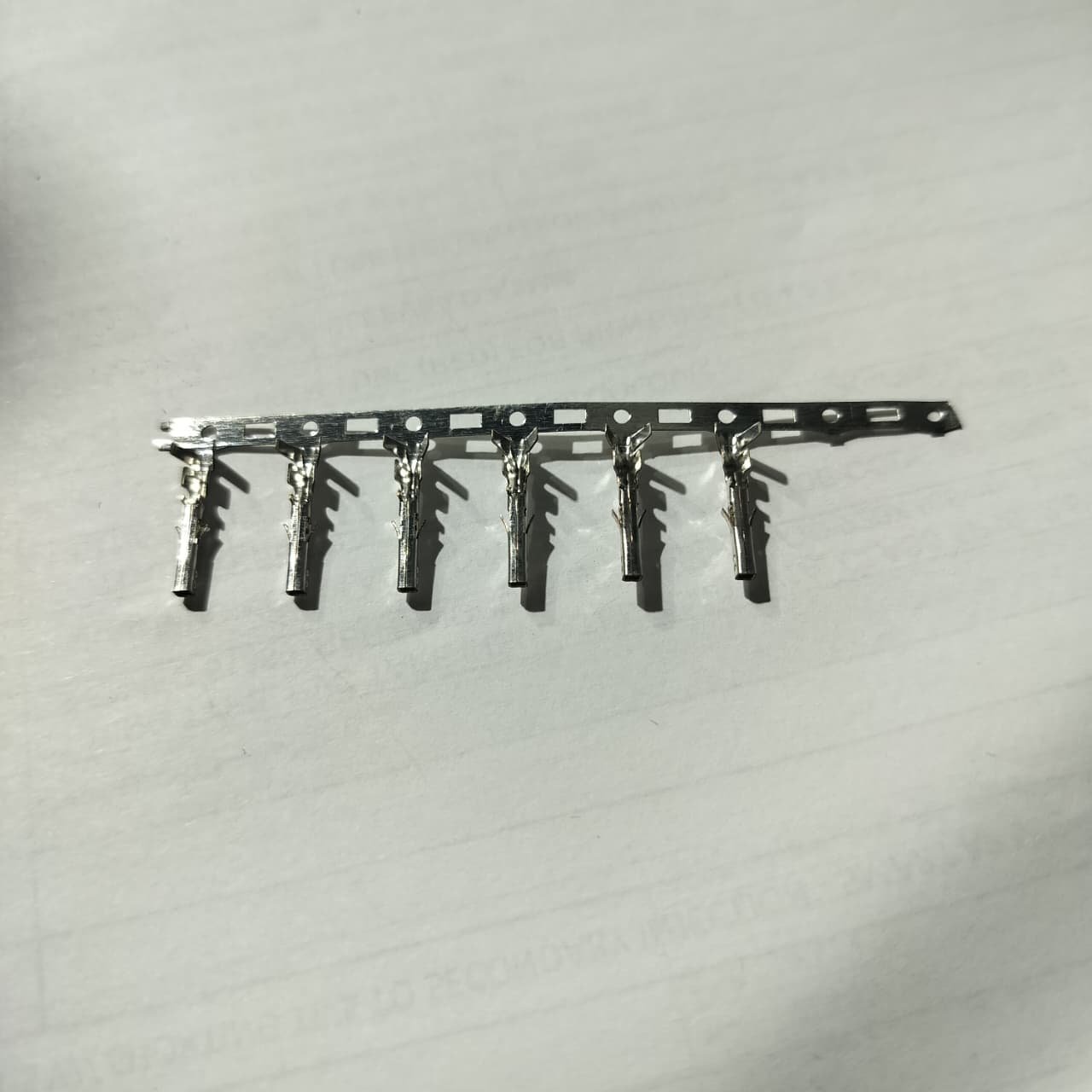

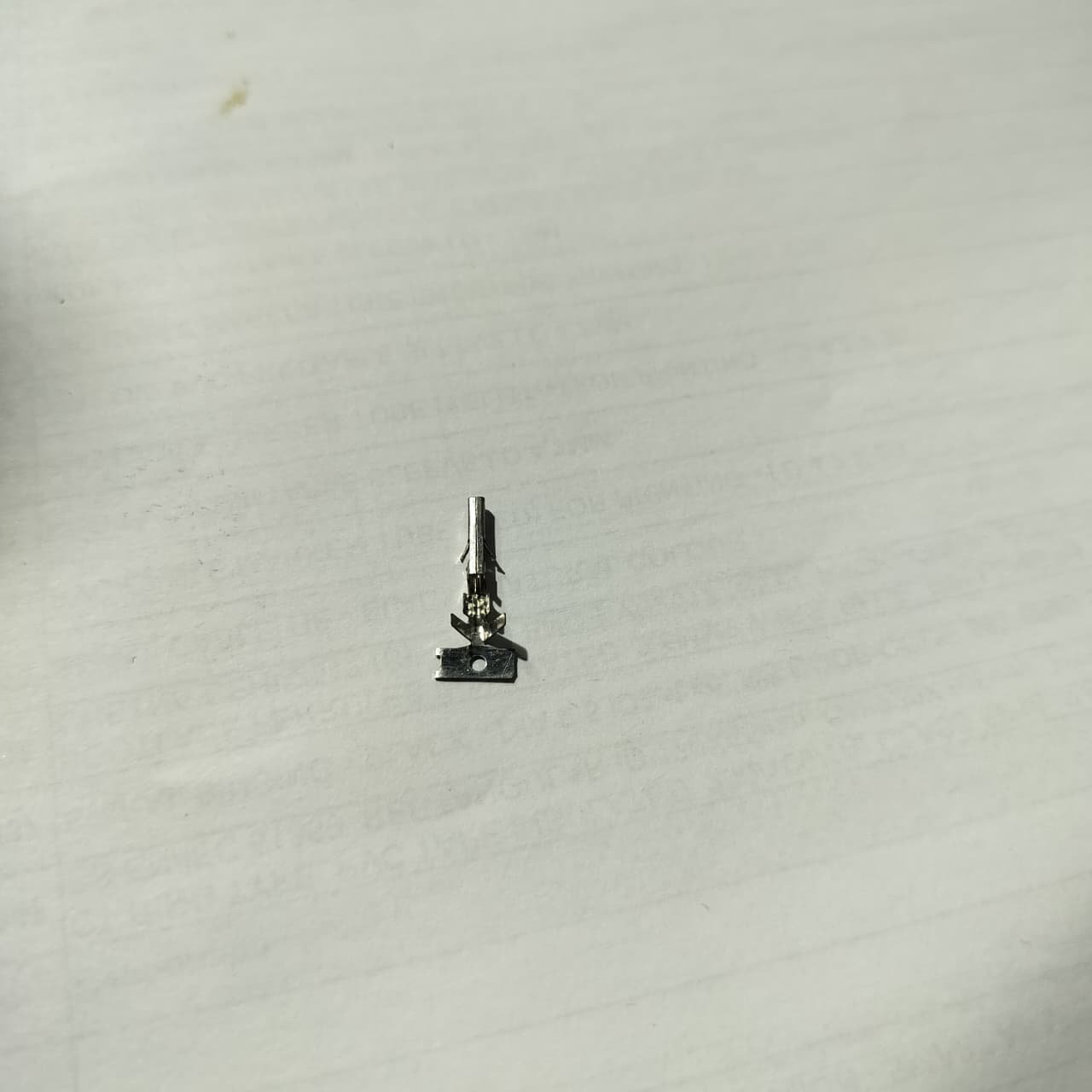

Mini-Fit Crimp Contacts :-
Molex Mini-Fit pin and receptacle crimp contacts are connector contacts for use in the Mini-Fit Junior plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. These Mini-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility.
Specifications :-
| Brand | Molex |
| Gender | Female |
| Product Type | Crimp Terminal |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Current | 9A |
| Series | 5556 |
| Minimum Wire Size AWG | 24 AWG |
| Contact Plating | Tin |
| Maximum Wire Size AWG | 18 AWG |
| Contact Material | Phosphor Bronze |
| Maximum Contact Resistance | 10mΩ |
| Minimum Operating Temperature | -40°C |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Standards/Approvals | No |
