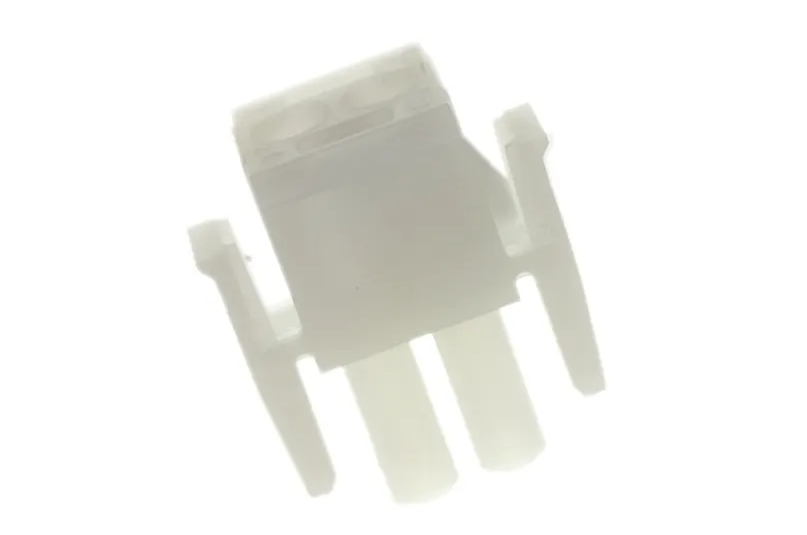

2 Position, Plug, Housing, Crimp, Wire-to-Board / Wire-to-Wire, UL 94V-2, 6.35 mm [.25 in] Centerline, 1 Row, 600 VAC, Universal MATE-N-LOK
Specifications :-
| Category | Specification | Details |
|---|---|---|
| Product Type Features | Connector Product Type | Housing |
| Connector & Housing Type | Plug | |
| Connector System | Wire-to-Board / Wire-to-Wire | |
| Sealable | No | |
| Connector & Contact Terminates To | Wire & Cable | |
| Configuration Features | Number of Positions | 2 |
| Number of Rows | 1 | |
| Number of Power Positions | 0 | |
| Number of Signal Positions | 0 | |
| Electrical Characteristics | Operating Voltage | 600 VAC |
| Body Features | Primary Product Color | Natural |
| Contact Features | Contact Layout | Inline |
| Multiple Contact Types | Without | |
| Contact Retention Within Housing | Without | |
| Contact Type | Socket | |
| Termination Features | Termination Method to Wire & Cable | Crimp |
| Mechanical Attachment | Connector Mounting Type | Cable Mount (Free-Hanging) |
| Housing Features | Centerline (Pitch) | 6.35 mm (.25 in) |
| Housing Material | Nylon | |
| Usage Conditions | Operating Temperature Range | -55°C to 105°C (-67°F to 221°F) |
| Operation / Application | Circuit Application | Power & Signal |
| Industry Standards | CSA Rating | Certified (LR 16455) |
| UL Standard | UL E28476 | |
| UL Rating | Recognized | |
| Agency Compatibility | CSA / UL / VDE | |
| UL Flammability Rating | UL 94V-2 | |
| Glow Wire Rating | Standard Part – Not Glow Wire | |
| Packaging Features | Packaging Quantity | 1 |
| Packaging Method | Package |
